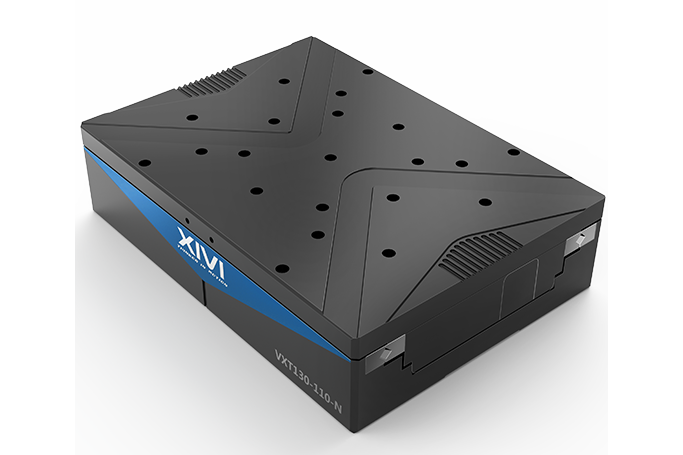

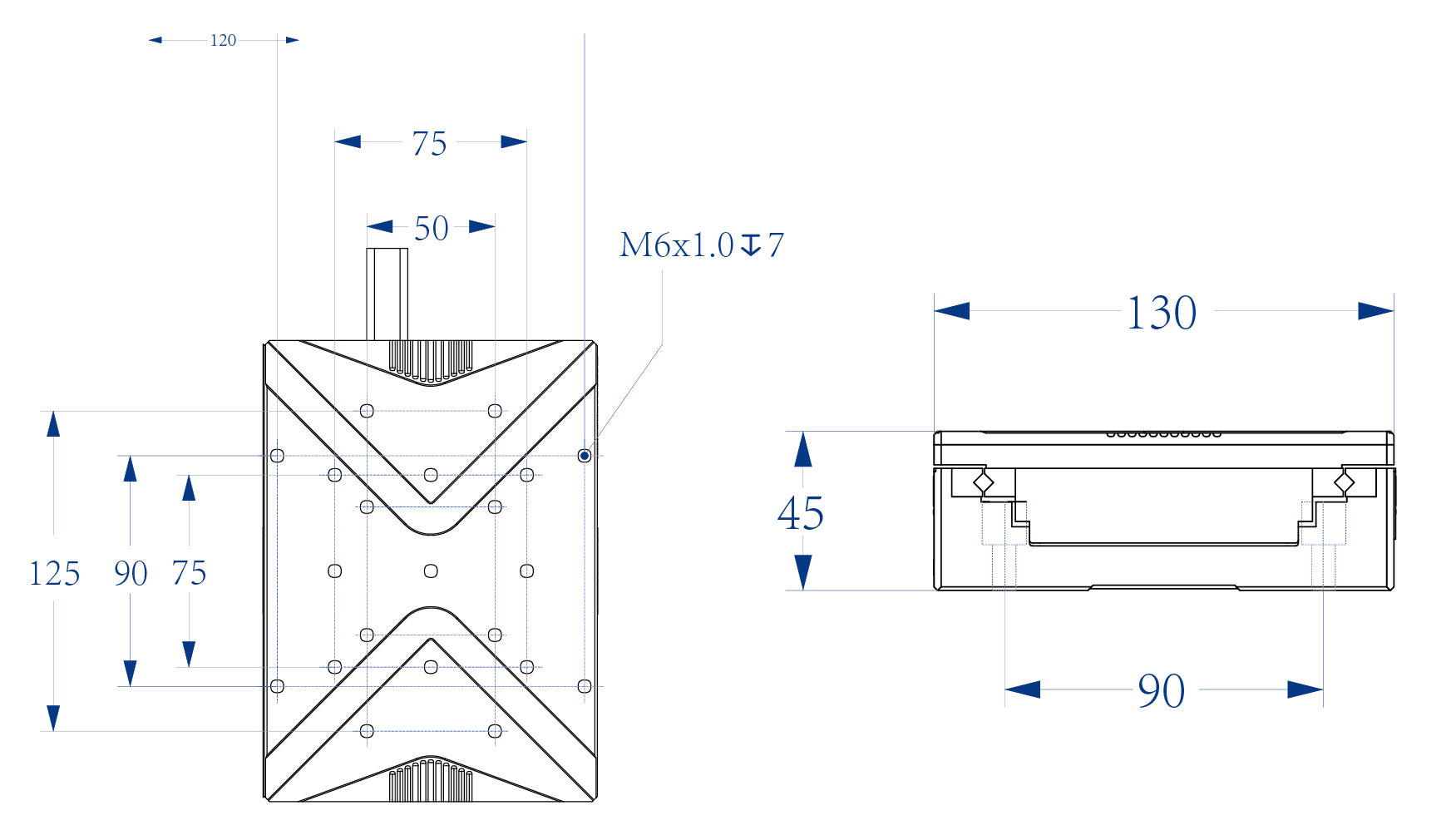

VXT130-L Series
具有纳米级性能并且行程较长
高分辨率（1nm），高重复定位精度（75nm）和高定位精度（250nm）
运动误差小、稳定精度高
具有抗蠕变特性
高动态特性
|
Mechanical Specifications |
VXT130-060-N |
VXT130-060-P |
VXT130-110-N |
VXT130-110-P |
|
|
Travel |
60 mm |
60 mm |
110 mm |
110 mm |
|
|
Accuracy |
±2 µm |
±250 nm |
±3 µm |
±300 nm |
|
|
Resolution |
1 nm |
1 nm |
1 nm |
1 nm |
|
|
Repeatability (Bi-Directional) |
±100 nm |
±75 nm |
±100 µm |
±75 nm |
|
|
Straightness & Flatness |
±0.75 µm |
±0.75 µm |
±0.75 µm |
±0.75 µm |
|
|
Pitch |
10 arc sec |
10 arc sec |
10 arc sec |
10 arc sec |
|
|
Yaw |
5 arc sec |
5 arc sec |
5 arc sec |
5 arc sec |
|
|
Maximum Speed |
300 mm/s |
300 mm/s |
300 mm/s |
300 mm/s |
|
|
Maximum Acceleration (No Load) |
10 m/s2 |
10 m/s2 |
10 m/s2 |
10 m/s2 |
|
|
In-Position Stability |
<1 nm |
<1 nm |
<1 nm |
<1 nm |
|
|
Maximum Force (Continuous) |
22 N |
||||
|
Load Capacity |
Horizontal |
10 kg |
|||
|
Side |
10 kg |
||||
|
Moving Mass |
1.5 kg |
1.5 kg |
2.0 kg |
2.0 kg |
|
|
Stage Mass |
2.8 kg |
2.8 kg |
3.5 kg |
3.5 kg |
|
|
Material |
Aluminum Body |
||||
|
MTBF |
20,000 hours |
||||
|
Mechanical Specifications |
VXT130-160-N |
VXT130-160-P |
||
|
Travel |
160 mm |
160 mm |
||
|
Accuracy |
±4 µm |
±300 nm |
||
|
Resolution |
1 nm |
1 nm |
||
|
Repeatability (Bi-Directional) |
±100 nm |
±75 nm |
||
|
Straightness & Flatness |
±1 µm |
±1 µm |
||
|
Pitch |
10 arc sec |
10 arc sec |
||
|
Yaw |
5 arc sec |
5 arc sec |
||
|
Maximum Speed |
300 mm/s |
300 mm/s |
||
|
Maximum Acceleration (No Load) |
10 m/s2 |
10 m/s2 |
||
|
In-Position Stability |
<1 nm |
<1 nm |
||
|
Maximum Force (Continuous) |
22 N |
|||
|
Load Capacity |
Horizontal |
10 kg |
||
|
Side |
10 kg |
|||
|
Moving Mass |
2.5 kg |
2.5 kg |
||
|
Stage Mass |
4.0 kg |
4.0 kg |
||
|
Material |
Aluminum Body |
|||
|
MTBF |
20,000 hours |
|||
